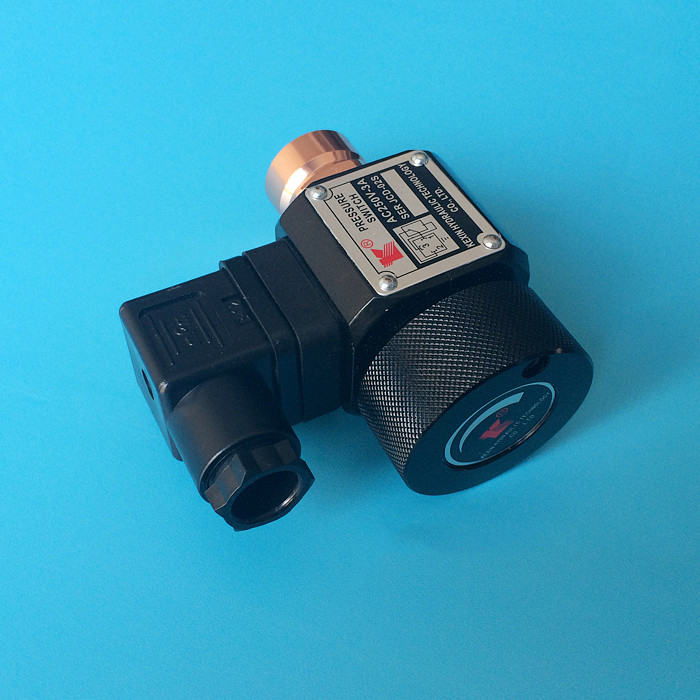

Hydraulic parts Pressure relay JCS -02S

Hydraulic parts Pressure relay JCS -02S

Hydraulic parts Pressure relay JCS -02S

Product Details:

Place of Origin: China
Certification: CE, ROHS

Payment & Shipping Terms:

Contact Now
Detailed Product Description

Electrohydraulic Pressure Switches are high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting.

The pressure switch is built-in microswitch, which interacts the pressure from the hydraulic system and delivers the electric signal to the solenoid directional valve or electromotor and make them change the direction, or warning



Model Rated Pressure  Max. Pressure Net Weight
JCS-02H 50-350kg/cm2 410kg/cm2 1.0kg
JCS-02N 30-210kg/cm2 210kg/cm2 1.0kg
JCS-02NL 15-60kg/cm2 70kg/cm2 1.0kg
JCS-02NLL 5-60kg/cm2 70kg/cm2 1.0kg
JCD-02S 4-26kg/cm2 70kg/cm2 1.0kg
JCS-02N-1 30-210kg/cm2 210kg/cm2 1.0kg
