Place of Origin: | China |
Certification: | CE, ROHS |
Payment Terms: | PAYPAL, ALIEXPRESS, T/T |
---|

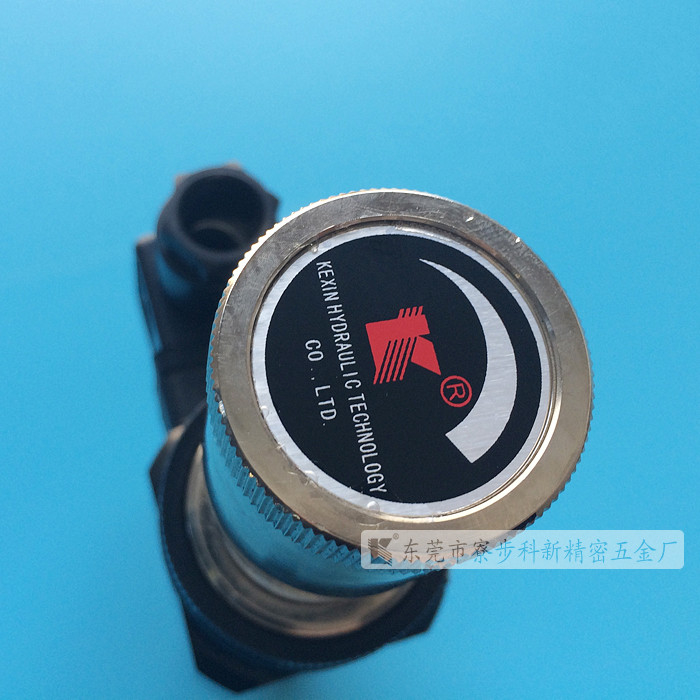

Electrohydraulic Pressure Switches are high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting.
The pressure switch is built-in microswitch, which interacts the pressure from the hydraulic system and delivers the electric signal to the solenoid directional valve or electromotor and make them change the direction, or warning ,even turn off the circuit, so as to make the system protection become true.
Model | Rated Pressure | Max. Pressure | Net Weight |
JCS-02H | 50-350kg/cm2 | 410kg/cm2 | 1.0kg |
JCS-02N | 30-210kg/cm2 | 210kg/cm2 | 1.0kg |
JCS-02NL | 15-60kg/cm2 | 70kg/cm2 | 1.0kg |
JCS-02NLL | 5-60kg/cm2 | 70kg/cm2 | 1.0kg |
JCD-02S | 4-26kg/cm2 | 70kg/cm2 | 1.0kg |
JCS-02N-1 | 30-210kg/cm2 | 210kg/cm2 | 1.0kg |
